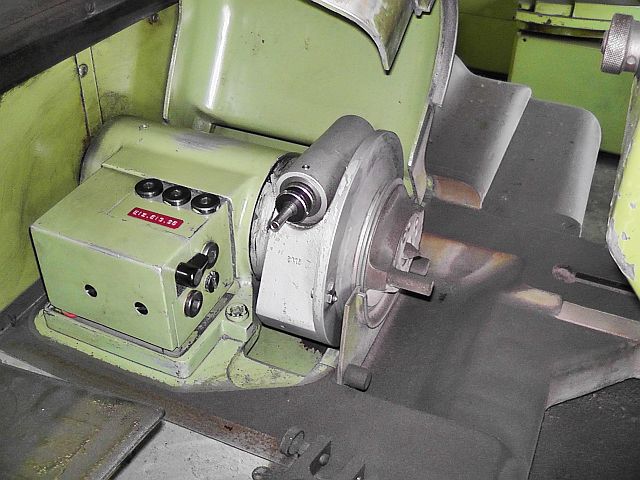

Gear Grinding Machine -MAAG

Code 6.12
Name Gear Grinding Machine -MAAG
Producer MAAG
Type HSS 10
Year prod.

Number of Teeth: 10-75
Module: 1-5
Maximum helicoid angle of 45 degrees.
Maximum wheel diameter: 150 mm
The minimum wheel diameter (base): 28 mm
mandrel diameter: 19 mm
mandrel length: 290 mm
distance between centers 205 to 332 mm
grinding wheel diameter: 165-220 mm
Diameter hole in the table: 90 mm
average index. Disc: 120 mm
Stroke: 120 to 440 min-1 (15 speeds)
Floor area of  the machine: 1820 x 1550 mm

 complete machine incl. exchanges wheels, documentation suction filtration
